"Susceptibility inside the Equipment Housing with a Slot"
Hiroaki KOGURE, Keisuke OGAWA, Hideki NAKANO
Kohji KOSHIJI and Eimei SHU

IEICE(Institute of Electronics, Information and Communication Engineers)

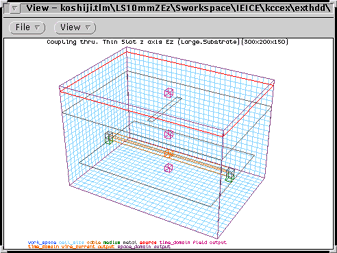

(Modeling of the structure)

(Signal line current perpendicular to a slot inside housing: upper)

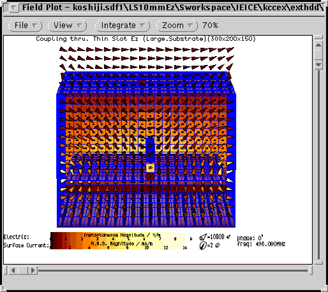

(Electric field inside the equipment housing)

Abstract It is so useful to analyze characteristics of printed circuits by modeling three dimensional structure. This paper deals with the electromagnetic field analysis for susceptibility of printed circuit inside the equipment housing using EM analyses, KCC "Micro-Stripes" by the Transmission-Line Modeling Method. This algorithm produce many useful basic information for evaluation of susceptibility and coupling to the circuits inside the equipment housing through a thin slot .
